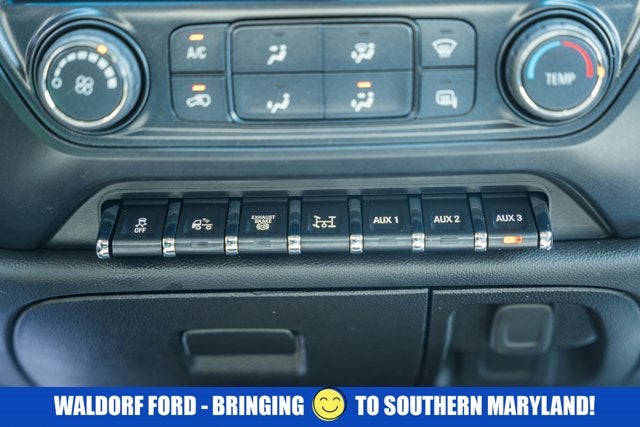

• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system feature, 4-speaker system

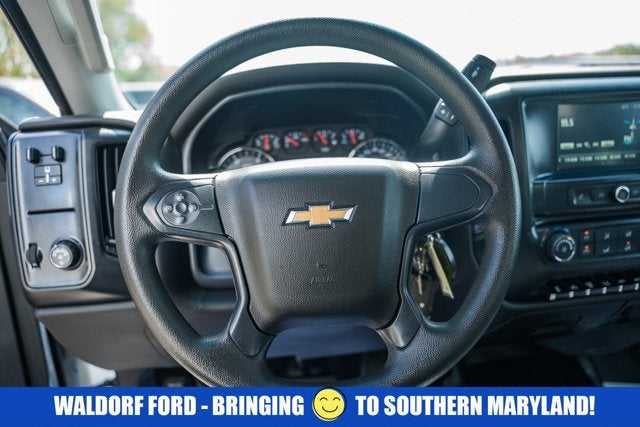

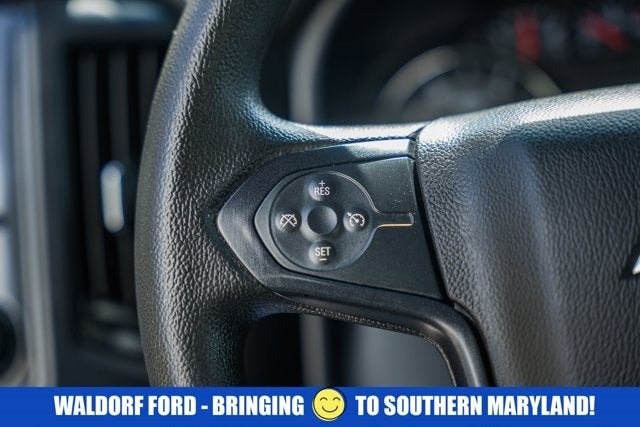

• Cruise control, steering wheel-mounted
• Door locks, power
• Floor covering, Graphite-colored rubberized-vinyl
• Mirror, inside rearview manual day/night
• Seat trim, Vinyl

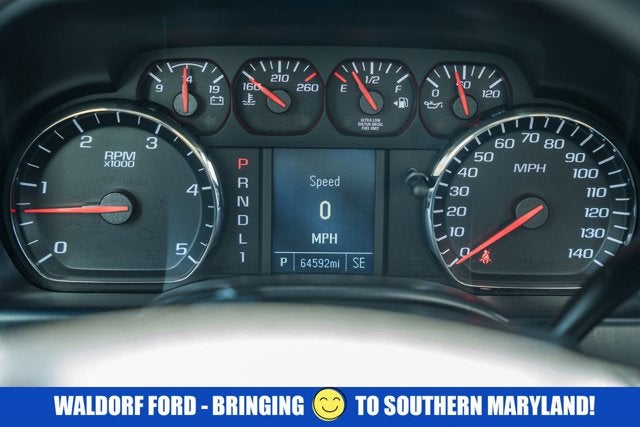

• Speedometer, miles/kilometers

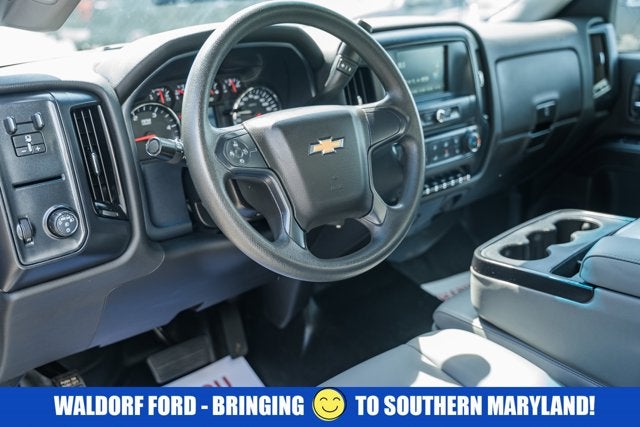

• Steering column, manual Tilt-Wheel
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl
• Windows, manual driver and front passenger

• Alternator, 150 amps
• Capped Fuel Fill
• Exhaust brake
• Fuel, diesel B20
• Rear wheel drive

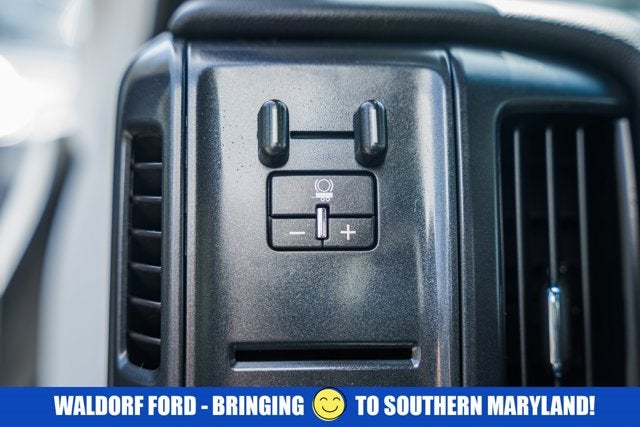

• Trailer brake controller, integrated

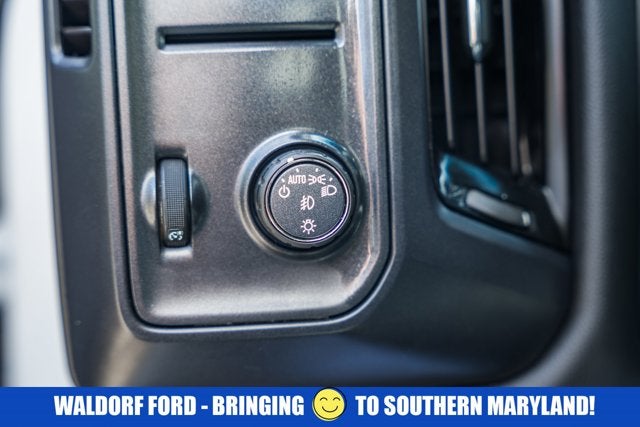

• Daytime Running Lamps, with automatic exterior lamp control
• Horn, single-note
• OnStar, delete
• Traction control

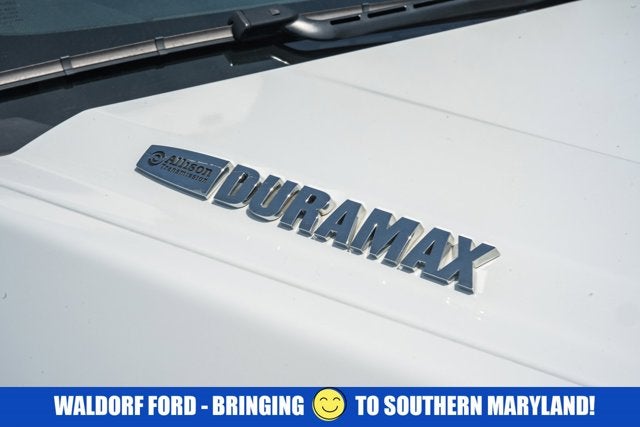

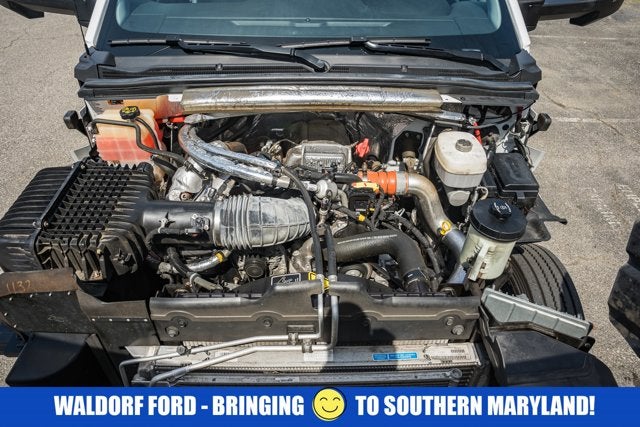

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)

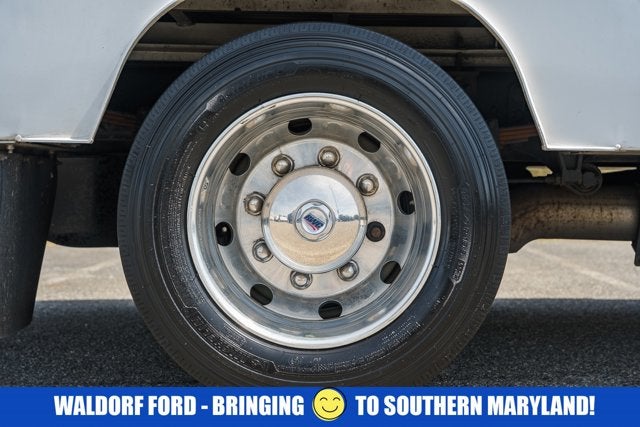

• TIRES REAR 225/70R19.5G TRACTION BLACKWALL PIRELLI Max Axle Load: 15 000 lb.
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• LICENSE PLATE KIT FRONT

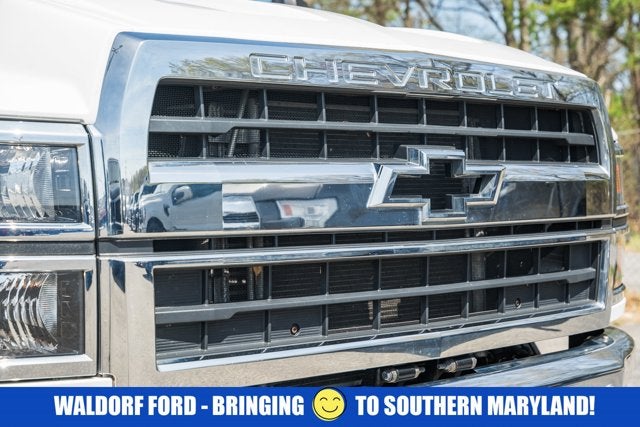

• GRILLE CHROME
• KEY SYSTEM 2 SPARE KEYS
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab

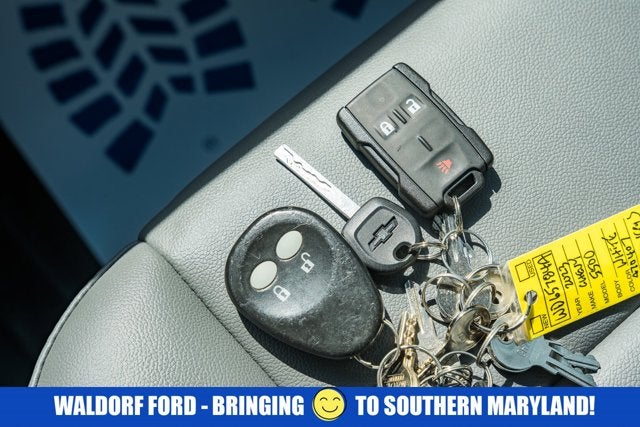

• REMOTE KEYLESS ENTRY
• 6-SPEAKER AUDIO SYSTEM
• FRONT STABILIZER BAR
• SHOCK ABSORBERS REAR

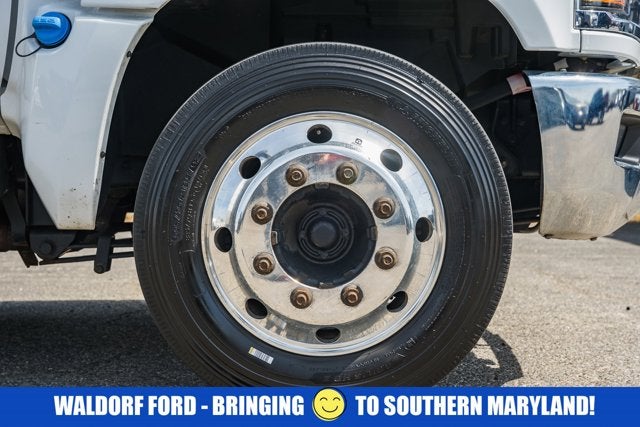

• TIRES FRONT 225/70R19.5G TRACTION BLACKWALL PIRELLI Max Axle Load: 7 940 lb.
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK

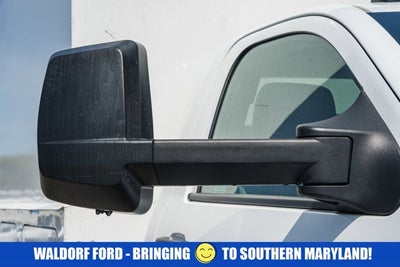

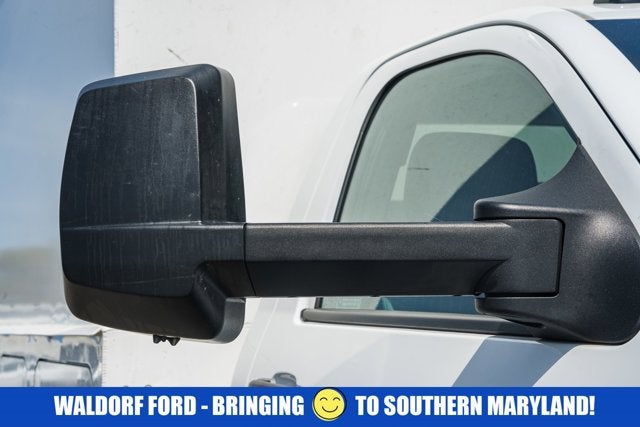

• MIRRORS OUTSIDE BLACK HEATED POWER-ADJUSTABLE HIGH-VISIBILITY VERTICAL CAMPER-STYLE AND LOWER CONVEX SPOTTER GLASS MANUAL-FOLDING. Convex glass is not heated and not power adjustable. 102" Wide Load
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• LABEL INFORMATION CLEAN IDLE DOOR LOCATION
• 34 000 LB. GCWR (15 422 KG)
• SNOW PLOW PREP PACKAGE includes (UNL) auxiliary harness for headlamps and turn signals (KW5) 220-amp alternator forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

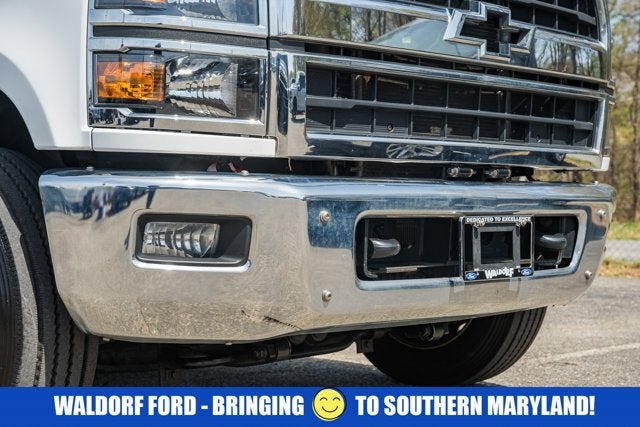

• BUMPER FRONT CHROME
• EXHAUST SYSTEM REAR EXIT
• GLASS DEEP-TINTED
• ELECTRICAL PROVISIONS REAR OF CAB UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• GVWR 19 500 LB. (8845 KG)

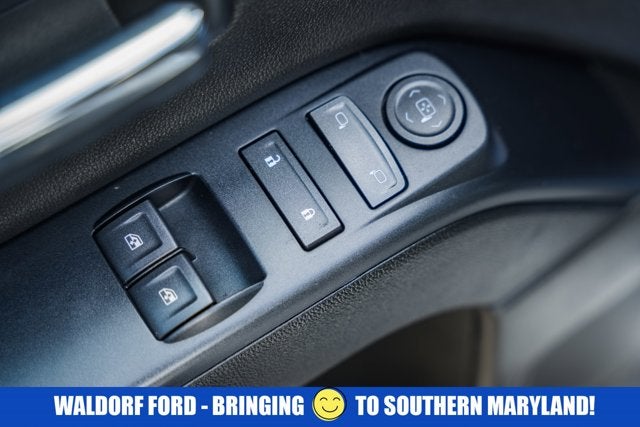

• WINDOWS POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS
• 4G LTE WI-FI HOTSPOT CAPABLE

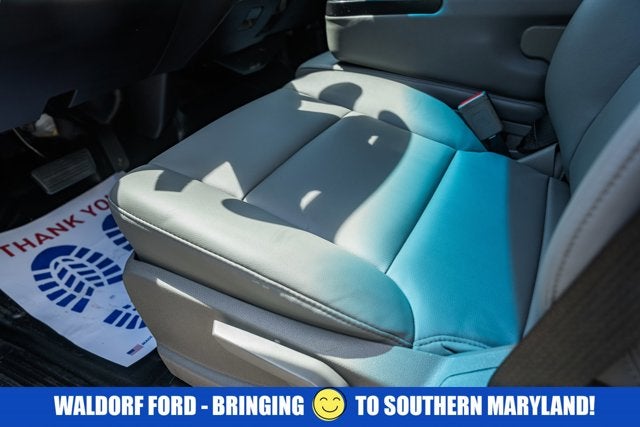

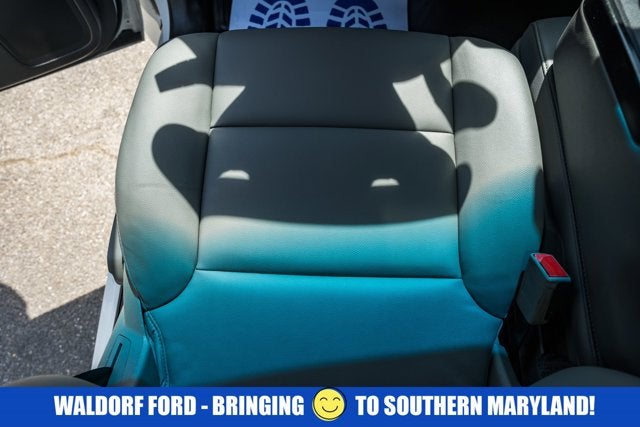

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• PAINT SOLID
• REAR SUSPENSION 13 500 LB. (6 123 KG) MULTI-LEAF VARI-RATE

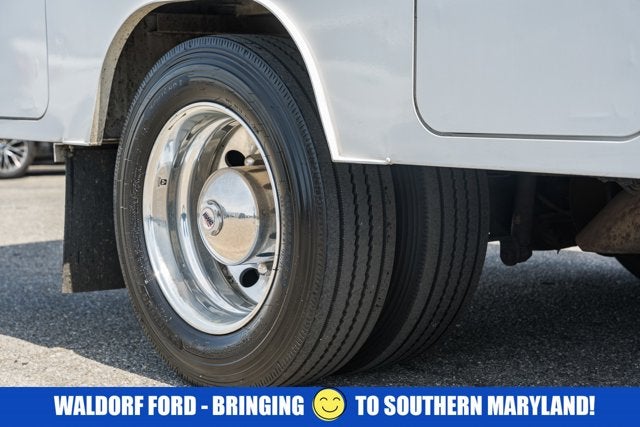

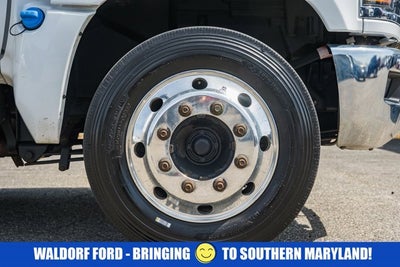

• WHEELS 19.5" X 6.75" 4-ALUMINUM WHEELS 8-HOLES HUB PILOTED Dura-Bright finish is on the outside of the wheel

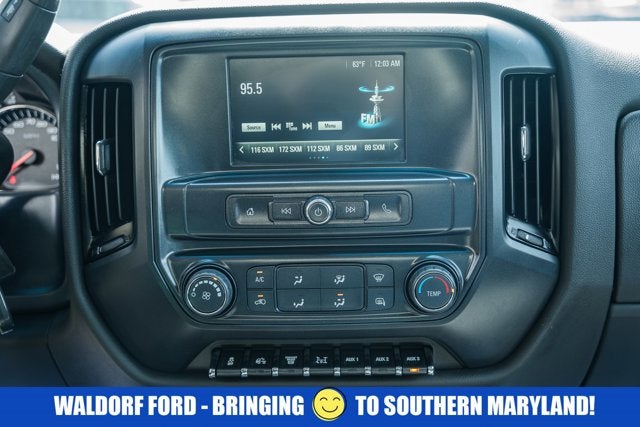

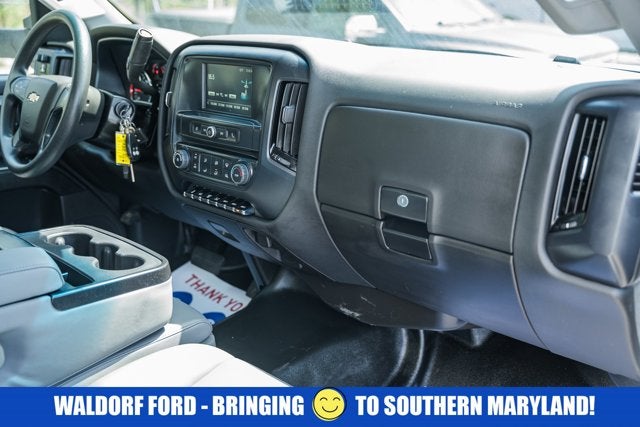

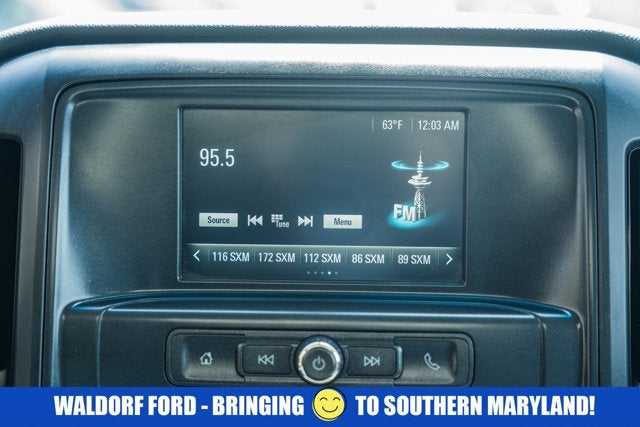

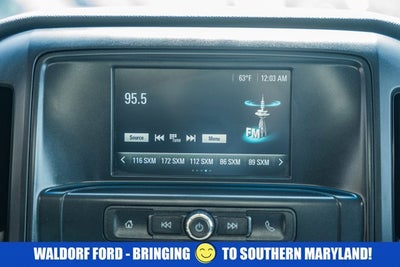

• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones. Includes (UQ3) 6-speaker audio system.
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• TIRE SPARE 225/70R19.5G TRACTION BLACKWALL PIRELLI Includes (V33) Rim Wrench and handle only tool kit.)
• WHEEL 19.5" X 6.75" SPARE ALUMINUM 8-HOLES temporary mounted on frame. Dura-Bright finish is on the outside of the wheel.
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

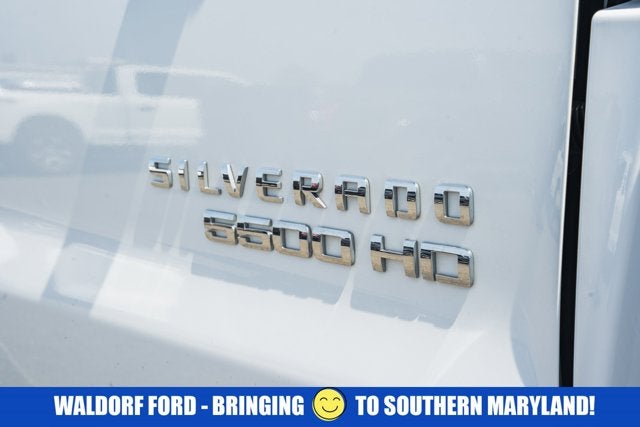

• 5500 HD SERIES

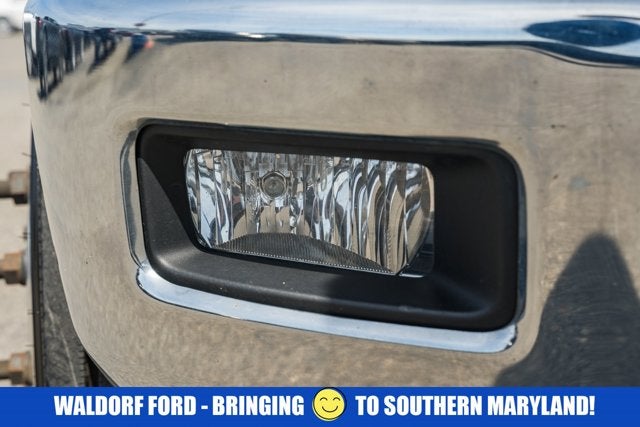

• FOG LAMPS FRONT HALOGEN
• FRONT AXLE 6 250 LB. (2 835 KG) DANA SPICER D800-N "I"-BEAM NON-DRIVING Includes (G68) rear shock absorbers.
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• TOOL KIT RIM WRENCH AND HANDLE ONLY
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• HORN DUAL-NOTE
• SIRIUSXM RADIO enjoy a Platinum Plan trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.

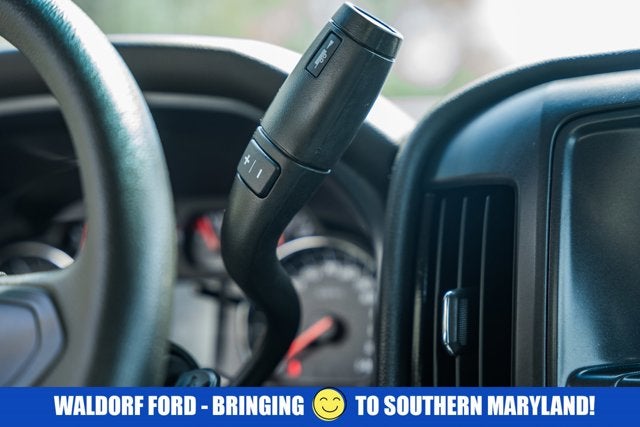

• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• ALTERNATOR 220 AMPS
• AUXILIARY HARNESS 3' FOR HEADLAMPS AND TURN SIGNALS
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• WHEELBASE 165" (419.1 CM) 84" CA
• LABEL FASTEN SEAT BELTS "Fasten Seat Belts" reminder label on right hand and left hand front side door glass
• FRONT SUSPENSION 6 250 LB. (2 835 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS (STD)
• POWER OUTLET 110-VOLT AC
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• Tires - Front All-Season
• Tires - Rear All-Season

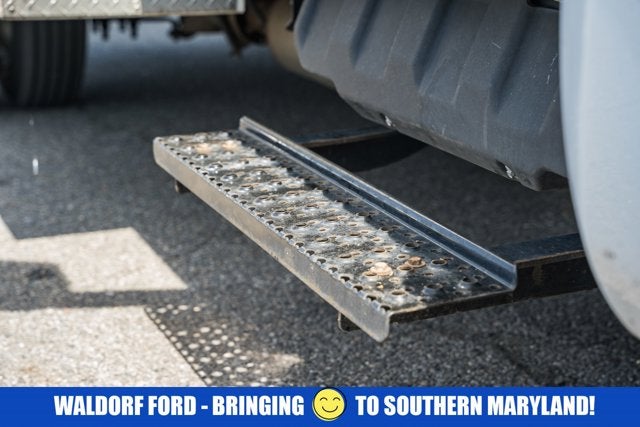

• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Adjustable Steering Wheel
• Power Door Locks
• Cruise Control

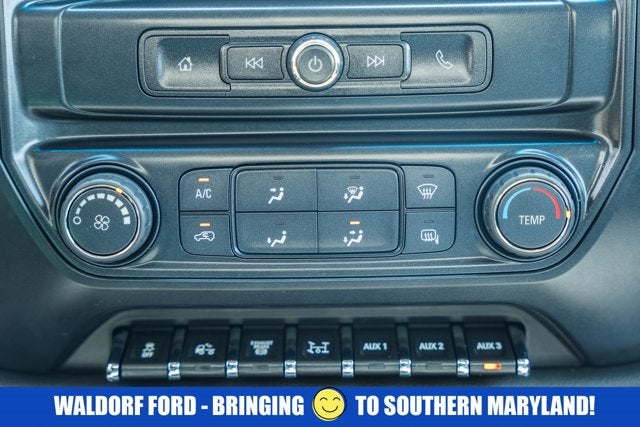

• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch

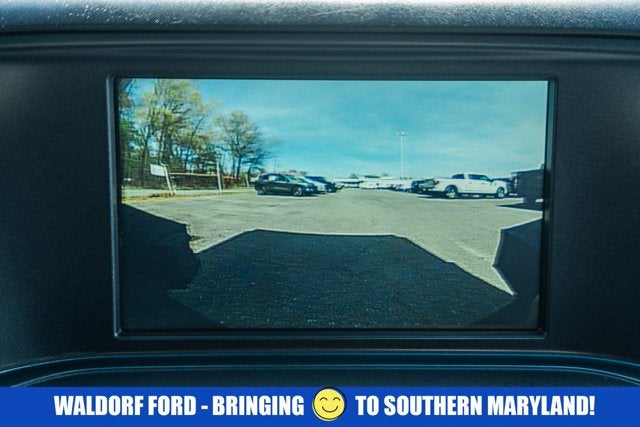

• Back-Up Camera

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Cab to Axle (in): 83.86
• Cab to End of Frame (in): 133.1
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 115.47
• Height, Overall (in): 82.81
• Length, Overall (in): 224.4
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 165
• Width, Max w/o mirrors (in): 92.7
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Behind Rear Axle
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 66.02
• Passenger Capacity: 3
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): 48.8
• Summary
• Body Style: Regular Cab Chassis Cab

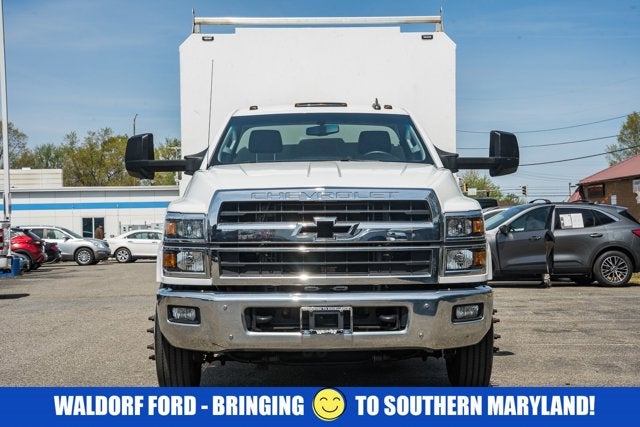

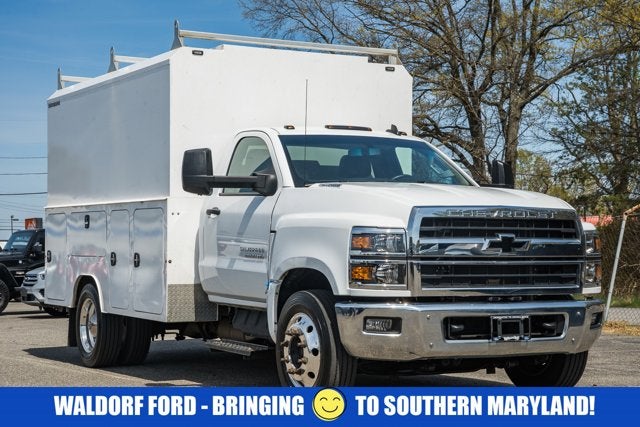

• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 6250
• Axle Capacity - Rear (lbs): 15500
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: Dana Spicer I-Beam
• Axle Type - Rear: Dana Spicer Single Reduction
• Shock Absorber Diameter - Front (mm): 50.8
• Shock Absorber Diameter - Rear (mm): 48.5
• Spring Capacity - Front (lbs): 6250
• Spring Capacity - Rear (lbs): 13500
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XEZ
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 1
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YEZ
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Capacity (lbs): 7940
• Spare Tire Order Code: ZEZ
• Spare Tire Size: 225/70R19.5G
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 4735
• Curb Weight - Rear (lbs): 2845
• Gross Axle Wt Rating - Front (lbs): 6250
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Combined Wt Rating (lbs): 34000
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• # of Bolt Holes - Spare: 8
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Rear Wheel Material: Aluminum & Steel
• Rear Wheel Size (in): 19.5 x 6.75
• Spare Bolt Pattern: 8 Hole JIS 10.83"
• Spare Wheel Material: Aluminum
• Spare Wheel Size (in): 19.5 x 6.75
