• 4G LTE Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)
• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio or (YF1) RV Package.)
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers
• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Incomplete vehicle certification
• Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Hill Start Assist
• OnStar and Chevrolet connected services capable (Not available with (YF2) Ambulance Package or (UXZ) radio provisions only audio system. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• REAR AXLE 3.42 RATIO
• THEFT ALARM NOTIFICATION requires paid plan working electrical system cell reception GPS signal armed GM factory-installed theft-deterrent system contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations
• MIRRORS OUTSIDE MANUAL-FOLDING BLACK DUAL PANE
• STEERING WHEEL LEATHER WRAPPED
• CRUISE CONTROL
• SUMMIT WHITE
• GRILLE CHROME
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.
• TIRES REAR LT245/75R16E ALL-SEASON BLACKWALL (STD) Jack and spare tire equipment bracket are not included.)
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• WHEEL CONFIGURATION REAR SINGLE (STD)
• AIRBAGS SEAT-MOUNTED SIDE-IMPACT FOR DRIVER AND RIGHT-FRONT PASSENGER AND ROOF-RAIL MOUNTED HEAD-CURTAIN SIDE-IMPACT
• BODY STANDARD (STD)
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• CONSOLE ENGINE COVER with swing-out storage bin
• AUDIO SYSTEM AM/FM STEREO WITH CD/MP3 PLAYER USB port seek-and-scan digital clock auto-tone control Radio Data System (RDS) TheftLock random select auxiliary jack and 2 front door speakers
• WHEELS 4 - 16" X 6.5" (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY-DUTY (STD)
• PAINT SOLID
• AUDIO SYSTEM FEATURE USB PORT
• WORK VAN PREFERRED EQUIPMENT GROUP Includes standard equipment
• DOOR LOCKS POWER with lock-out protection
• SIRIUSXM RADIO enjoy an All Access trial subscription with over 150 channels including commercial-free music plus sports news and entertainment. Plus listening on the SiriusXM app online and at home on compatible connected devices is included so you'll hear the best SiriusXM has to offer anywhere life takes you. Welcome to the world of SiriusXM.
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• POWER CONVENIENCE PACKAGE includes (A31) power windows and (AU3) power door locks
• GVWR 9900 LBS. (4490 KG) (STD) (Includes (R04) single rear wheel configuration.
• ANTENNA EQUIPMENT includes additional antenna cable and ground plate. Provides additional ability to relocate standard OnStar antenna cable length 25 ft. Ships loose.
• WINDOWS POWER
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• TIRES FRONT LT245/75R16E ALL-SEASON BLACKWALL (STD) Jack and spare tire equipment bracket are not included.)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille.
• TRANSMISSION OIL COOLER EXTERNAL
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Bucket Seats
• A/C
• Bucket Seats
• Trip Computer
• Immobilizer
• Power Outlet
• Power Outlet
• Rear Defrost
• Back-Up Camera
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Rear Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Back-Up Camera
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.45
• Frame Width, Rear (in): 42
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 9.05
• Ground Clearance, Rear (in): 8.4
• Ground to Top of Frame (in): 31.45
• Height, Overall (in): 83.95
• Length, Overall (in): 247.15
• Overhang, Front (in): 39.7
• Wheelbase (in): 139
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Front Head Room (in): 40.85
• Front Hip Room (in): 65.48
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB

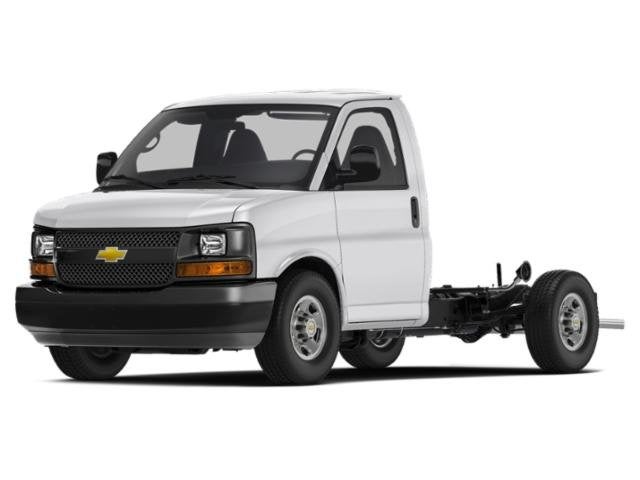

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Weight Information
• Curb Weight - Front (lbs): 2918
• Curb Weight - Rear (lbs): 1392
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
